Moritex Factory Automation Lenses
Moritex Machine Vision Lenses fit a wide range of industrial and security applications. These lenses include standard line scan machine vision lenses, as well as macro zoom, macro, and CCTV lens options as well.

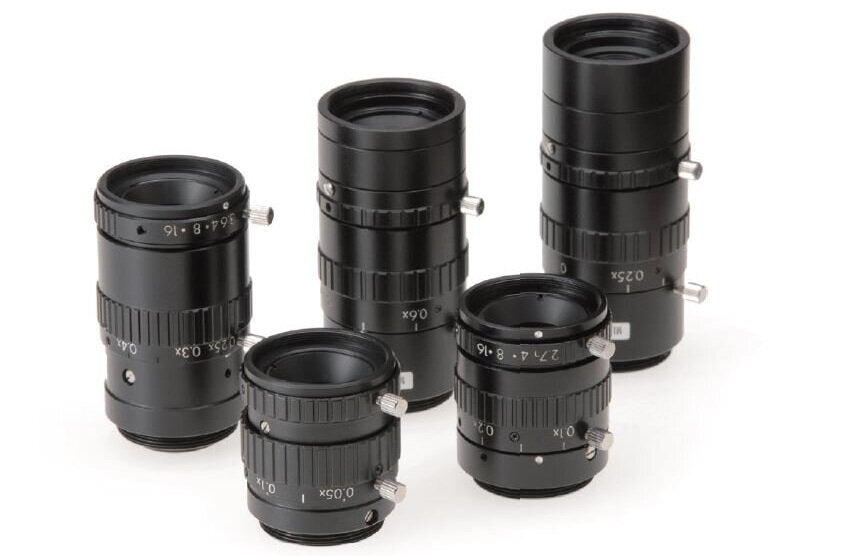

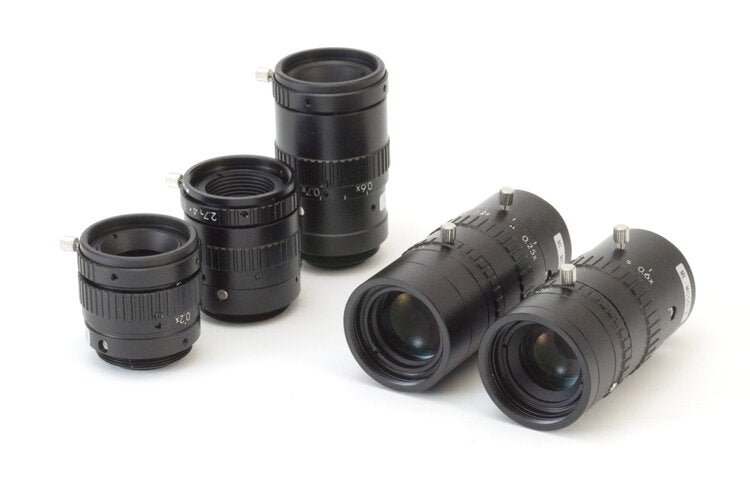

Megapixel Macro Lenses
These megapixel macro lenses include close up rings, a distortion free high performance design, with magnification range options ranging from 0.05x to 1.72x,
ML-MC16HR Distance: 16mm Magnification: x0.05 - x0.2
ML-MC25HR Distance: 25mm Magnification:x0.1 - x0.4
ML-MC35HR Distance: 35mm Magnification:x0.25 - x0.7
ML-MC50HR Distance: 50mm Magnification:x0.5 - x0.8
ML-MC75HR Distance: 75mm Magnification:x0.18 - x0.38

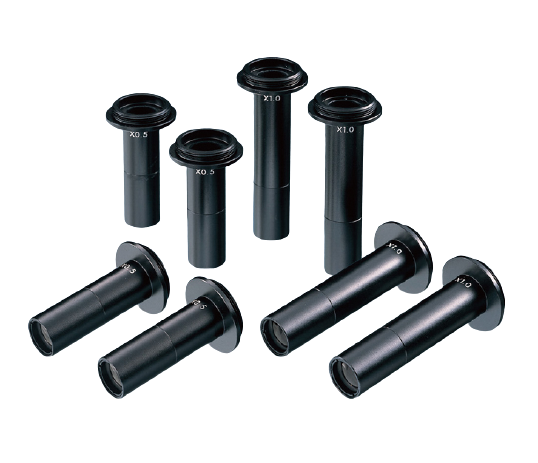

FA Macro Lenses
These macro lenses come in a compact body with low distortion at a cost effective price point. Ideal for food label inspection, alignment and security
ML01-327N - Magnification: 0.10±5% WD(mm): 327.7
ML03-181N - Magnification: 0.30±5% WD(mm):181.3
ML05-132N - Magnification: 0.50±5% WD(mm):132.5
ML05-250N - Magnification: 1.00±5% WD(mm):250
ML1-89N - Magnification: 1.00±5% WD(mm):89.6

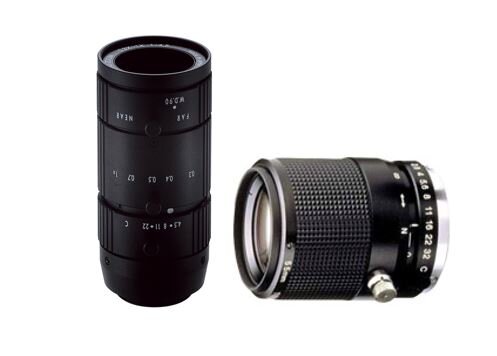

Macro Zoom Lenses
These lenses come with set screws for locking, manual zoom, and various magnification levels.
ML-Z0108 Magnification: 0.1-0.8 WD (mm): 213, C-Mount
MLH-3XMP Magnification: 0.1-0.8 WD (mm): 213, C-Mount
MLH-10X Magnification: 0.1-0.8 WD (mm): 213, C-Mount
MTE-55 Magnification: 0.1-0.8 WD (mm): 213, C-Mount

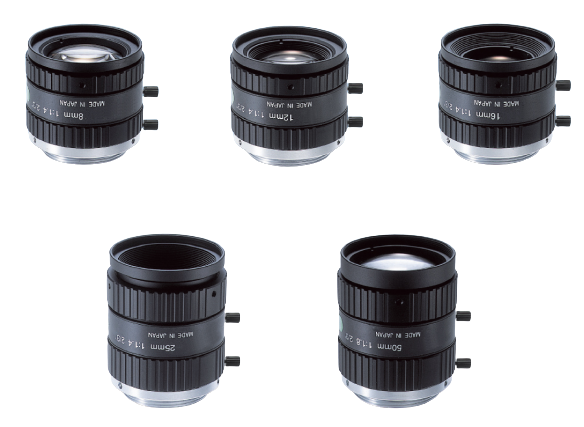

CCTV Lenses
These CCTV lenses are c-mount with megapixel resolution and a wide range of focal lengths in either 1/2” or 2/3” sensor format. These lenses are ideal for 2D bar code reading, security, food label inspection, and shape recognition.
ML-H0514MP 5mm F1.4 - 16C Sensor: 1/2"
ML-M0814MP 8mm F1.4 - 16C Sensor: 2/3"
ML-M1214MP 12mm F1.4 - 16C Sensor: 2/3"
ML-M1614MP 16mm F1.4 - 16C Sensor: 2/3"
ML-M2514MP 25mm F1.4 - 16C Sensor: 2/3"
ML-M3514MP 35mm F1.4 - 16C Sensor: 2/3"
ML-M5018MP 50mm F1.8 - 16C Sensor: 2/3"
ML-M7528MP 75mm F2.8 - 16C Sensor: 2/3"
ML-0614 6mm F1.4 - close Sensor: 1/2"
ML-0813 8mm F1.3 - close Sensor: 2/3"
ML-1214 12mm F1.4 - close Sensor: 1/2"
ML-1614 16mm F1.4 - close Sensor: 2/3"
ML-2514 25mm F1.4 - close Sensor: 1”
ML-3519 35mm F1.9 - close Sensor: 2/3"
ML-5018 50mm F1.8 - close Sensor: 2/3"
ML-7527 75mm F2.7 - close Sensor: 2/3"
ML-10035 100mm F3.5 - close Sensor: 2/3"
FA/Macro Lenses

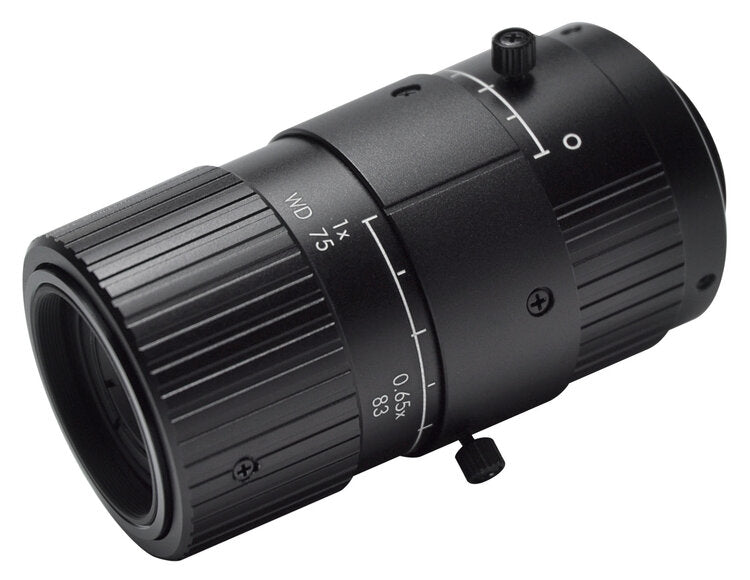

ML-MC43-HR-22C
The ML-MC43-HR-22C has a resolving power of 130lp/mm, with a 5 megapixel resolution and a 4/3” sensor size.
It’s ideal for inspection processes, absence/presence checking, PCB substrate inspection, and alignment vision.
ML-MC-XR
The compact ML-MC-XR series has a resolving power of 200lp/mm, with a 20 megapixel resolution and a 1.2” sensor size.
It’s ideal for PCB inspection, factory automation applications, and automotive parts inspection.
ML-MC2518XR-18C 25mm focal length, F1.8 - 16, 19.3 (1.2 " sensor)
ML-MC3518XR-18C 35mm focal length, F1.8 - 16, 19.3 (1.2 " sensor)
ML-MC5020XR-18C 50mm focal length, F2.0 - 16, 19.3 (1.2 " sensor)
ML-MC9028XR-18C 90mm focal length, F2.8 - 16, 19.3 (1.2 " sensor)
The compact, vibration resistant ML-MC-G series has a resolving power of 150lp/mm, with a 12 megapixel resolution and a 1.1” sensor size.
It’s ideal for PCB inspection, factory automation applications, and automotive parts inspection.
ML-MC1228-18C-G 12mm focal length, F2.8, 1.1" sensor
ML-MC1628-18C-G 16mm focal length, F2.8, 1.1" sensor
ML-MC2528-18C-G 25mm focal length, F2.8, 1.1" sensor
ML-MC3528-18C-G 35mm focal length, F2.8, 1.1" sensor
ML-MC5028-18C-G 50mm focal length, F2.8, 1.1" sensor
ML-MC7528-18C-G 75mm focal length, F2.8, 1.1" sensor
FA/Line Scan Lenses
ML-LS9040
The ML-LS9040 series features various magnification options and wide band AR coating at 400nm ~ 1100nm.
It’s ideal for inspection processes, absence/presence checking, PCB substrate inspection, and alignment vision.

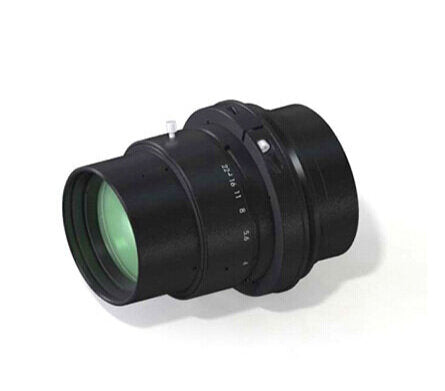

ML-LS9040-67V70-02 91.77mm Focal Length, 0.2 Magnification x, 67 mm Image Format
ML-LS9040-67V70-024 92.52mm Focal Length, 0.24 Magnification x, 67 mm Image Format
ML-LS9040-67V70-03 93.3mm Focal Length, 0.3 Magnification x, 67 mm Image Format
ML-LS9040-67V70-038 94.25mm Focal Length, 0.388 Magnification x, 67 mm Image Format
ML-LS9040-67V70-045 95.24mm Focal Length, 0.45 Magnification x, 67 mm Image Format

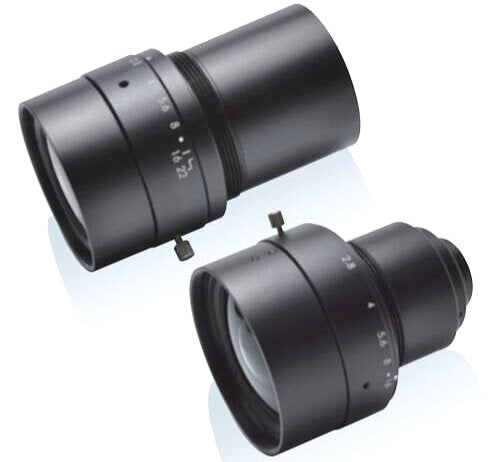

The compact, vibration resistant ML-FF series has a resolving power of 130lp/mm, with an ML-TUBE for connection allowing for flexible magnification adjustment.
These lenses are ideal for PCB inspection, factory automation applications, and print color inspection.
ML-2828-35M39 28mm Focal Length, ∞ - 0.13 Magnification x, 35 mm Image Format
ML-3528-43M39 35mm Focal Length, ∞ - 0.035 Magnification x, 43 mm Image Format
ML-5540-62M35 55mm Focal Length, ∞ - 0.3 Magnification x, 62.5 mm Image Format
ML-6540-62M39 65mm Focal Length, ∞ - 0.4 Magnification x, 62.5mm Image Format
ML-8040-62M39 80mm Focal Length, ∞ - 0.088 Magnification x, 62.5 mm Image Format
ML-10040-82M39 100mm Focal Length, ∞ - 0.43 Magnification x, 82mm Image Format

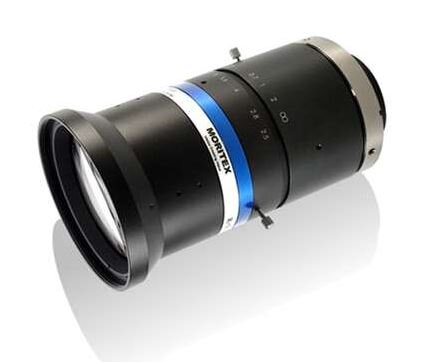

The compact, ML-M-32 series features Vis/NIR coating, large formats, with F and M52 mount options.
These lenses are ideal for high speed inspection, color printing inspection, food and agricultural inspection, and surface inspection.
ML-2825M-32F 28mm Focal Length, ∞ - 0.081 Magnification x, 32 mm Image Format, F Mount
ML-2825M-32M52 28mm Focal Length, ∞ - 0.081Magnification x, 32 mm Image Format, M52 Mount
ML-3525M-32F 35mm Focal Length, ∞ - 0.101 Magnification x, 32mm Image Format, F Mount
ML-3525M-32M52 35mm Focal Length, ∞ - 0.101 Magnification x, 32mm Image Format, M52 Mount
ML-5025M-32F 50mm Focal Length, ∞ - 0.127 Magnification x, 32mm Image Format, F Mount
ML-5025M-32F 50mm Focal Length, ∞ - 0.127 Magnification x, 32mm Image Format, M52 Mount
The ML-13538 series features high resolution at >130lp/mm and compatibility with 16K5 large format sensors.
These lenses are ideal for PCB and film inspection, CF, BM, and LCD glass inspection.
ML-13538-82V70-033 133.1mm Focal Length, ∞ - 0.33 Magnification x, Image Circle 82mm
ML-13538-82V70-05 134.8mm Focal Length, ∞ - 0.5 Magnification x, mage Circle 82mm Mount
ML-13538-82V70-076 133.8mm Focal Length, ∞ - 0.76 Magnification x, mage Circle 82mm

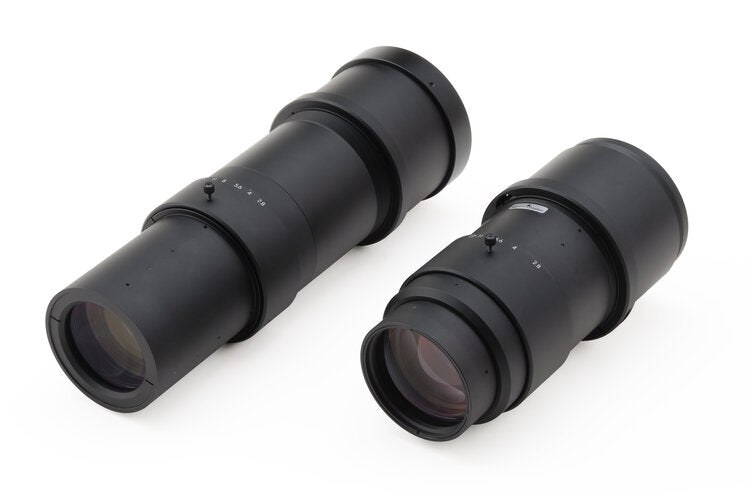

ML-F90C
The ML-F90C series features high resolution at >150lp/mm and RGB chromatic aberration correction.
These lenses are optimized for use of 16k line scan camera and ideal for high resolution inspection and film/sheet inspection.
ML-F90C-07 97.6mm Focal Length, 0.7 Magnification, WD 181, F2.8-22
ML-F90C-175 97.7mm Focal Length, 1.75 Magnification, WD 95.7, F2.8-22

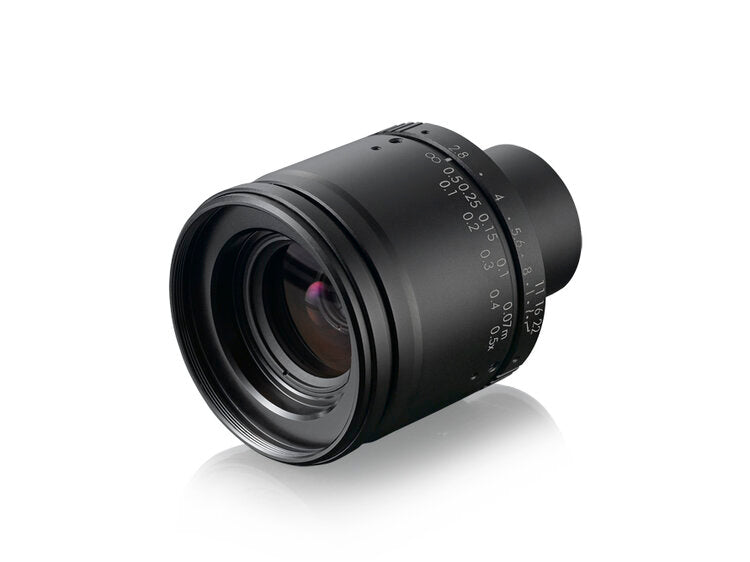

ML-3528-43F
The ML-3528-43F lens is ideal for PCB inspection, factory automation inspection applications, and color inspection.
ML-3528-43F 35mm Focal Length, Image CIrcle 45mm, F2.8-22

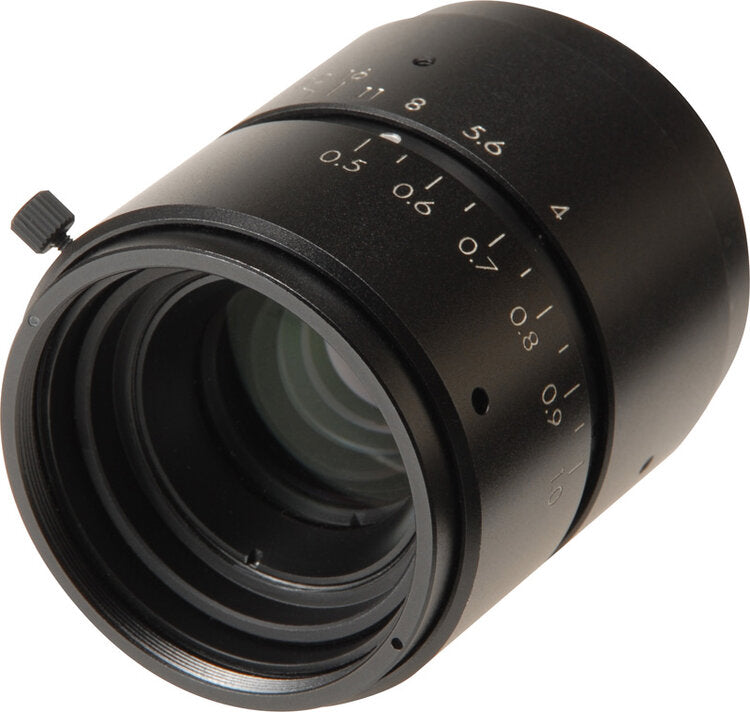

ML-F80C
The ML-F80C series features low distortion, RGB chromatic correction, and magnification.
These lenses are optimized for PCB inspection, LCD inspection, wafer pattern and foreign matter inspection, and printed material inspection applications.
ML-F80C-0205 84.55mm Focal Length, 0.2- 0.5 Magnification, Image Format 82mm
ML-F80C-0510 83.73-82.53mm Focal Length, 0.5- 1.0Magnification, Image Format 82mm
FA/CCTV Lenses
ML-U-SR Series
The compact ML-U-SR lenses include VIS/NIR AR coating, 150lp/mm resolution, 12 megapixels, floating mechanism and a 1.1” format.
ML-U0817SR-18C Focal length 8mm, F1.7-16, 1.1”
ML-U1217SR-18C Focal length 12mm, F1.7-16, 1.1”
ML-U1615SR-18C Focal length 16mm, F1.5-16, 1.1”
ML-U2515SR-18C Focal length 25mm, F1.5-16, 1.1”
ML-U3518SR-18C Focal length 35mm, F1.8-16, 1.1”
ML-U5022SR-18C Focal length 50mm, F2.2-16, 1.1”
ML-M-UR Series
The compact ML-M-UR lenses include VIS/NIR AR coating, 200lp/mm resolution, and a 2/3” format.
ML-M0625UR Focal length 6mm, F2.5-16, 2/3”
ML-M0822UR Focal length 8mm, F2.2-16, 2/3”

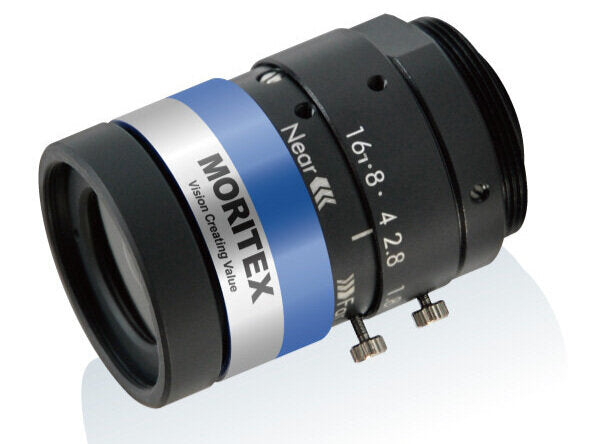

ML-M1218UR Focal length 12mm, F1.8-16, 2/3”
ML-M1616UR Focal length 16mm, F1.6-16, 2/3”
ML-M2516UR Focal length 25mm, F1.6-16, 2/3”
ML-M3520UR Focal length 35mm, F2.0-16, 2/3”
ML-M5025UR Focal length 50mm, F2.5-16, 2/3”

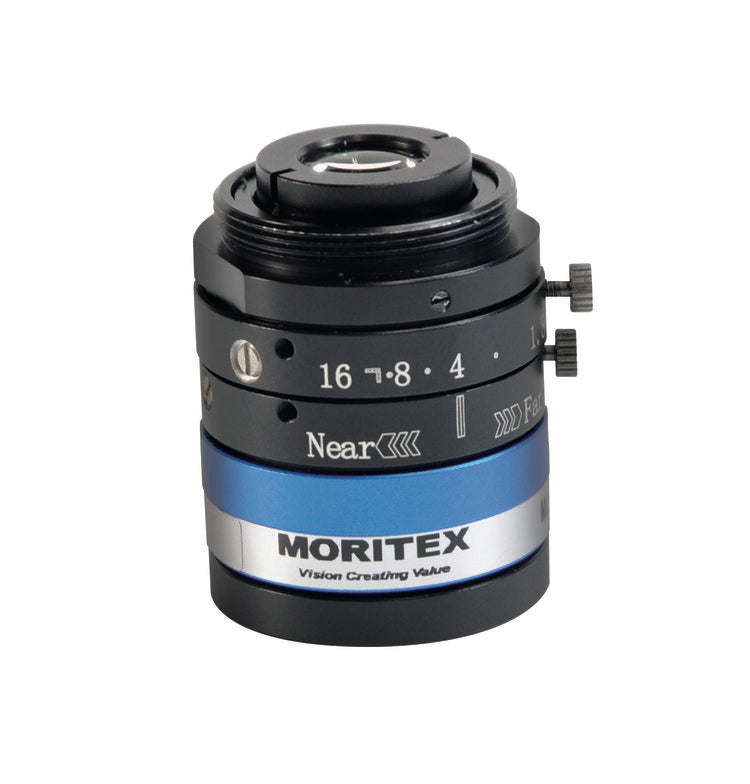

ML-M-HR Series
The compact ML-M-HR lenses include VIS/NIR AR coating, 130lp/mm resolution, and a 2/3” format.
ML-M0818HR Focal length 8mm, F1.8-16, 2/3”
ML-M1218HR Focal length 12mm, F1.8-16, 2/3”
ML-M1618HR Focal length 16mm, F1.8-16, 2/3”
ML-M2518HR Focal length 25mm, F1.8-16, 2/3”
ML-M3520HR Focal length 35mm, F2.0-16, 2/3”
ML-M5025HR Focal length 50mm, F2.5-16, 2/3”
ML-T Series
The compact ML-T lenses include VIS/NIR AR coating, vibration resistance, 150lp/mm resolving power, 12 Megapixel resolution in a 1.1” format. These lenses are ideal for transport system applications.
ML-T0528-18C Focal length 5mm, F2.8-16, 1.1”
ML-T2028-18C Focal length 20mm, F2.8-16, 1.1”
ML-T2528-18C Focal length 25mm, F2.8-16, 1.1”
ML-T3528-18C Focal length 35mm, F2.8-16, 1.1”

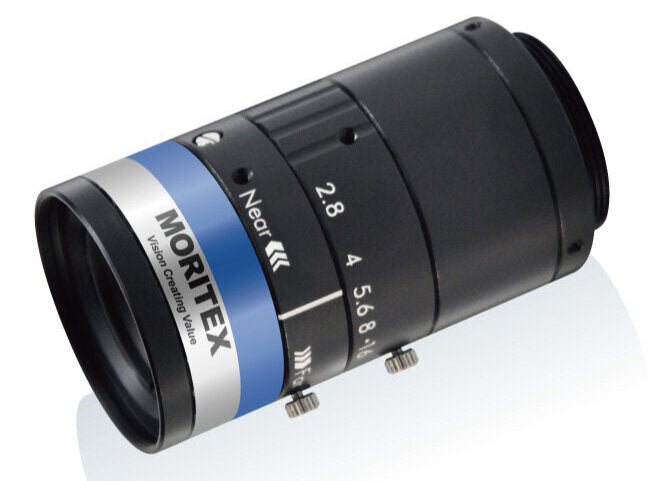

ML-T5028-18C Focal length 50mm, F2.8-16, 1.1”
ML-T7528-18C Focal length 75mm, F2.8-16, 1.1”
